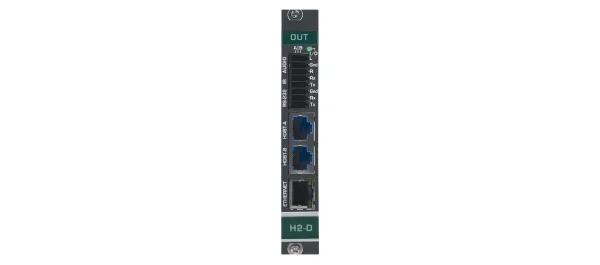

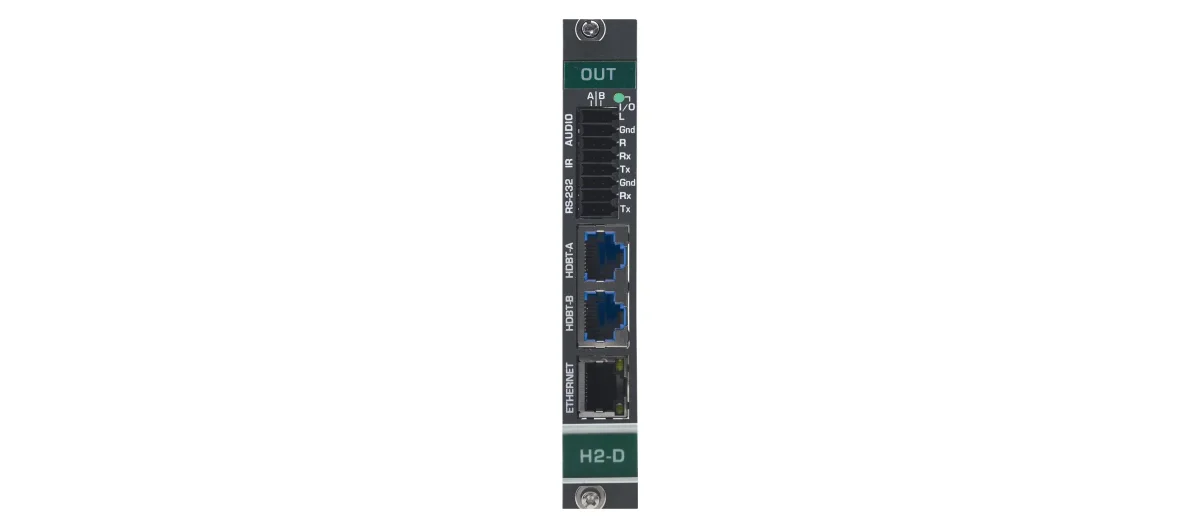

DTAxrD2-OUT2-F34 – 2-Kanal 4K HDR HDBaseT Ausgangskarte mit analogem Ton und erweiterter Reichweite

DTAxrD2−OUT2−F34 is a two−channel, 4K@60Hz (4:4:4), DSC, HDMI, analog audio, bidirectional RS−232, Ethernet, & IR over HDBaseT twisted pair transmitter card for compatible Kramer Modular Multi−Format Digital Matrix Switchers. DTAxrD2−OUT2−F34 outputs two extended−reach HDBaseT signals with selectable embedded/de–embedded analog audio, bidirectional RS−232, IR, and Ethernet from the chassis to the line.

• Max. Data Rate — 18Gbps (6Gbps per graphics channel), 10Gbps DSC over CAT cable.
• Max. Resolution — 4K@60Hz (4:4:4).
• Analog Audio Embedding/De–embedding or ARC — On the same jack.
• HDBaseT Technology — HDTV compatible, HDCP 2.2/1.4 compliant.
• System Range — Up to 100m at normal mode (4K), up to 130m (430ft) at normal mode (2K), up to 180m (590ft) ultra mode (1080p @60Hz @24bpp). Note: When using Kramer HDBaseT cables.
• Ethernet Extension — Ethernet interface data flows in both directions, allowing extension of up to 100Mbps Ethernet connectivity for LAN communication and device control.
• Bidirectional RS–232 Extension: — Serial interface data flows in both directions, allowing data transmission and device control.
• Bidirectional Infrared Extension: — IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
• 3D Pass–Through.
