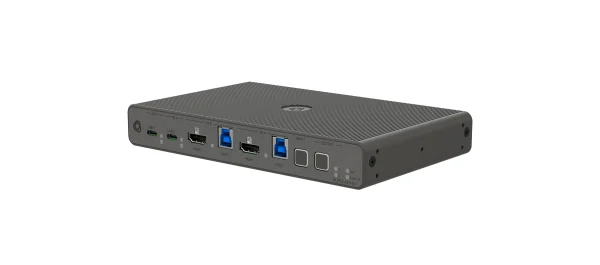

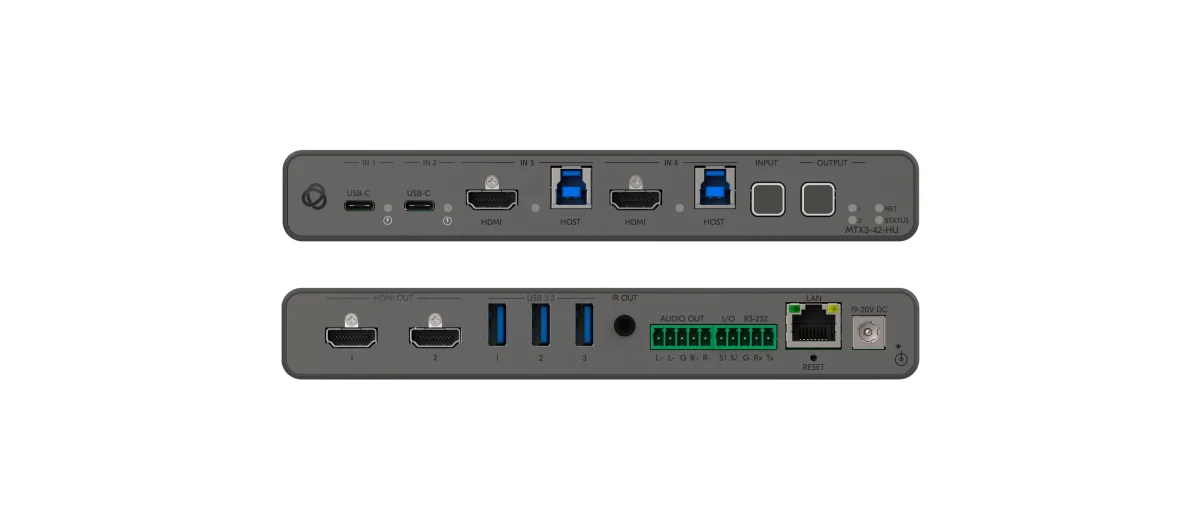

MTX3-42-HU – 4x2 4K60 USB−C/HDMI Matrix

MTX3−42−HU is a high−performance matrix/auto−switcher with two USB−C and two HDMI/USB inputs and two HDMI outputs. It can independently route 4K60 4:4:4 AV signals and USB 3.2 data between connected devices. A USB 3.2 hub allows connecting USB peripherals such as room cameras and USB collaboration devices and sharing them between the hosts. The MTX3−42−HU unit is ideal for creating, captivating and immersive hybrid meeting experiences.

• Hybrid–meeting Collaborative Switching — Controllable coupled–signal switching of both AV and USB host inputs, for concurrent connection with AV output and space USB devices. Allows collaborative hybrid meetings where multiple meeting participants can switch and share their content with both room and online meeting participants.
• BYOD Ease and Convenience — Connect any DP–Alt–Mode–capable USB–C device as one of the AV presentation source, while providing the connected device with USB 3.2/USB 2.0 and Ethernet connection, and (if PD–2.0–capable) up to 100 watts of power, via two USB–C cable connections.
• HDMI Signal Switching — HDCP 2.3 compliant, supporting deep color, x.v.Color™, CEC, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0
• USB 3.2 Switching — USB 3.2 signal switching enables high data–rate connection between an active USB host and space USB devices, such as 4K camera, high–quality audio devices and HID (Human Interface Devices) mouse or keyboard devices.
• I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation.
• Audio De–embedding — The digital audio signal passing–through to the output, is de–embedded, converted to an analog signal and sent to the stereo balanced analog audio output. This enables playing audio on a locally connected professional audio system (such as DSP) and speakers, in parallel to playing it on speakers connected to the AV acceptor device (such as TVs with speakers).
• Auto Switcher Ease of Use — Automatically plays signal of the plugged source on the connected display, according to user–configured preferences, such as last–connected input.
• Display On/Off Operation — Meeting presentation is simplified by manually or automatically turning on/off CEC–enabled or serially–controlled displays when the presentation source is plugged in / unplugged.

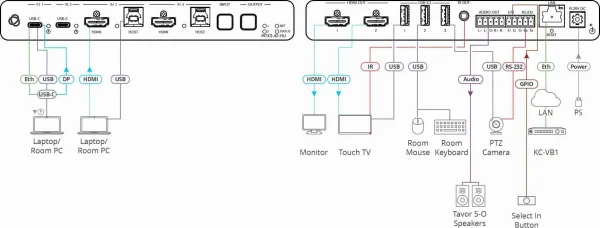

• Simple Control — Offers remote IP–controller connection, browser operation webpages, local panel buttons, and remotely connected contact–closure buttons, for easy and flexible user port selection, signal routing, and switcher control.
• Built–in Intelligent Control Gateway — Supports remote IP–driven intelligent control of connected AV, USB and sensor devices via CEC, RS–232, IR or I/O. Eliminating the need for an external control gateway, this feature reduces installation complexity and costs, enabling easy integration with control systems, such as Kramer Control.
• Secured Network Connection — Standard IT–grade 802.1x authentication for secured IT LAN connectivity.
• Comprehensive Management — Local panel indication LEDs to facilitate effortless local maintenance and troubleshooting, and remote IP–driven firmware upgrade and management via user–friendly embedded web pages and optional whole site management systems together ensure lasting and field proven deployment.
• Easy and Elegant Installation — MegaTOOLS™ fan–less enclosure for surface or dropped–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter, for easy switcher deployment
